# Right Circular Cylinder

## Trigonometry # Right Circular Cylinder

A right circular cylinder is a cylinder that has a closed circular surface having two parallel bases on both the ends and whose elements are perpendicular to its base. It is also called a right cylinder. All the points, in a right circular cylinder, lying on the closed circular surface is at a fixed distance from a straight line known as the axis of the cylinder. The two circular bases of the right circular cylinder have the same radius and are parallel to each other. It is one such geometric shape that is used frequently in real life. Basically, to derive the formulas for the surface area and volume of the cylinder, the right cylinder is considered. If the bases of the cylinder are not parallel to each other, then such cylinder is known as an oblique cylinder in 3D geometry.

## What is a Right Circular Cylinder?

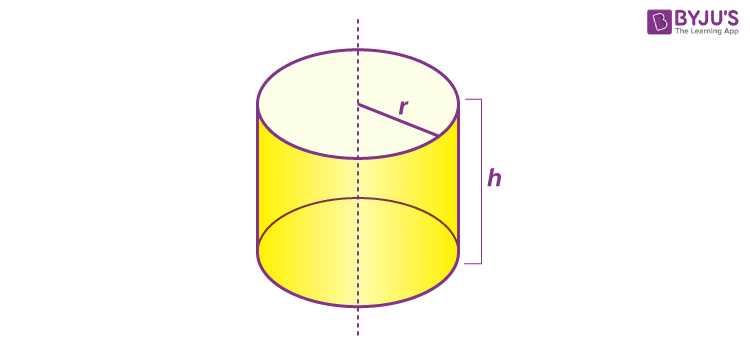

A cylinder whose bases are circular in shape and parallel to each other is called the right circular cylinder. It is a three-dimensional shape. The axis of the cylinder joins the center of the two bases of the cylinder. This is the most common type of cylinder used in day to day life. Whereas the oblique cylinder is another type of cylinder, which does not have parallel bases and resembles a tilted structure. In the above figure, r is the radius of the circular bases and h is the height of the right cylinder.

### Parts of Right Circular Cylinder

The three parts of the right circular cylinder are:

• Top circular base
• Curved lateral face
• Bottom circular face

## Properties of Right Circular Cylinder

You must have learned about the properties of the cylinder before. Here, let us discuss the right circular cylinder properties.

• The line joining the centers of the circle is called the axis.
• When we revolve a rectangle about one side as the axis of revolution, a right cylinder is formed.
• The section obtained on cutting a right circular cylinder by a plane, which contains two elements and parallels to the axis of the cylinder is the rectangle.
• If a plane cuts the right cylinder horizontally parallel to the bases, then it’s a circle.

## Right Circular Cylinder Formulas

A surface, which is generated by a line that intersects a fixed circle and is perpendicular to the plane of the circle is said to be a right circular cylinder. A right cylinder has two circular bases which are of the same radius and are parallel to each other. The formulas for surface area, curved or lateral surface area and volume of the right circular cylinder are discussed here.

### Curved Surface Area of right circular cylinder

The surface area of a closed right circular cylinder is the sum of the area of the curved surface and the area of the two bases. The curved surface that joins the two circular bases is said to be the lateral surface of the right circular cylinder.

 Lateral or Curved Area = 2 π r h square units

where r is the radius of circular bases and h is the height of cylinder.

### Total Surface Area of right circular cylinder

The sum of the lateral surface area and the base area of both the circles will give the total surface area of the right circular cylinder.

 TSA = 2 π r (h + r) square units

where r is the radius of circular bases and h is the height of cylinder.

### Volume of right circular cylinder

The volume of a right circular cylinder is given by the product of the area of the top or bottom circle and the height of the cylinder. The volume of a right cylinder is measured in terms of cubic units.

Volume = Area of the circular bases x Height of the Right Cylinder

 Volume = πr2 h

where r is the radius of circular bases and h is the height of the cylinder.

## Solved Examples on Right Circular Cylinder

Let us solve some problems based on the formulas of the right circular cylinder.

Q.1: Find the volume of a right cylinder, if the radius and height of the cylinder are 20 cm and 30 cm respectively.

Solution: We know,

Volume of a right cylinder = πr2 h cubic units

Given, r = 20 cm h = 30 cm

Therefore, using the formula, we get;

Volume = 3.14 × 202 × 30

= 3.14 × 20 × 20 × 30

= 37680

Hence, the volume of the given right cylinder is 37680 cm3.

Q.2: The radius and height of a right cylinder are given as 5 m and 6.5 m respectively. Find the volume and total surface area of the right cylinder.

Solution: Given that, r = 5 m h = 6.5 m

We know, by the formula,

Volume of a right cylinder = πr2 h cubic units

Therefore,

Volume = 3.14 × 52 × 6.5

= 3.14 × 25 × 6.5

= 510.25

Hence, the volume of the given right cylinder is 510.25 cubic m.

Now we know again, the total surface area of the right cylinder is given by;

TSA = Area of circular base + Curved Surface Area

TSA = 2 π r (h + r) square units

By putting the values of radius and height, we get;

TSA = 2 x π x 5 (6.5 + 5)

TSA = 2 x 3.14 x 5 x 11.5

TSA = 361.1 sq.m

Hence, the total surface area of the given right cylinder is 361.1 m2.

## Practice Questions

If the radius of circular bases and height of the right circular cylinder is given, then find the surface areas and volumes.

• Radius = 3 cm, Height = 5 cm
• Radius = 7 cm, Height = 8 cm
• Radius = 0.5 m, Height = 2 m
• Radius = 14 cm, Height = 22 cm

## Frequently Asked Questions on Right Circular Cylinder

### What do you mean by right circular cylinder?

A right circular cylinder is a cylinder whose bases are circular in shape and parallel to each other. Both the bases are connected to each other through a lateral or curved surface.

### How many faces a right circular cylinder has?

A right circular cylinder has three faces. Two circular faces and one lateral face.

### How many edges does a right circular cylinder has?

A right circular cylinder has two edges.

### What is an example of right circular cylinder?

Gas cylinders, cans, pipes, etc., are real-life examples of a right circular cylinder.
