Intercept
In Maths, an intercept is a point on the y-axis, through which the slope of the line passes. It is the y-coordinate of a point where a straight line or a curve intersects the y-axis. This is represented when we write the equation for a line, y = mx+c, where m is slope and c is the y-intercept.
There are basically two intercepts, x-intercept and y-intercept. The point where the line crosses the x-axis is the x-intercept and the point where the line crosses the y-axis is the y-intercept. In this article, you will learn what is the intercept, how to find the intercept for a given line, graphing intercepts along with solved examples.
Table of contents: |
Definition of Intercept
The point where the line or curve crosses the axis of the graph is called intercept. If a point crosses the x-axis, then it is called the x-intercept. If a point crosses the y-axis, then it is called the y-intercept.
The meaning of intercept of a line is the point at which it intersects either the x-axis or y-axis. If the axis is not specified, usually the y-axis is considered. It is normally denoted by the letter ‘b’.
Except that line is accurately vertical, it will constantly cross the y-axis somewhere, even if it is way off the top or bottom of the chart.
Also read: Equation of plane in intercept form
Intercept Formula
The equation of the line, which intersects the y-axis at a point is given by:
y = mx + c
Now, we have to write the intercept form of the line, we can replace c with b. Thus, the equation becomes:
y = mx + b
Hence, the formula for the y-intercept of a line is given by:
b = y – mx
Where, b is the intercept, m is the slope of the line and y and x indicate the points on the y-axis and x-axis respectively.
Now, another way of writing the equation of the line, considering a line is intersecting the x-axis and y-axis at point a and b respectively.
x/a + y/b = 1
Here, a and b are the intercepts of the line which intersect the x-axis and y-axis, respectively. The values of a and b can be positive, negative or zero and explain the position of the points at which the line cuts both axes, relative to the origin.
How to Find X and Y Intercepts?
Consider a straight line equation Ax + By = C.
Divide the equation by C,
(Ax/C) + (By/C) = C/C
[x/(C/A)] + [y/(C/B)] = 1Comparing this equation with the equation of a line in intercept form, (x/a) + (y/b) = 1,
We get, x-intercept = a = C/A
y-intercept = b = B/C
Alternatively,
To find the x-intercept, substitute y = 0 and solve for x.
i.e. Ax + B(0) = C
Ax = C
x = C/A
To find the y-intercept, substitute x =0 and solve for y.
i.e. A(0) + By = C
By = C
y = C/B
Go through the example given below to understand this concept in a better way.
Example: Let us assume the straight-line equation 5x +2y =10
To find x-intercept:
Substitute y=0 in the given equation
5x + 2(0) = 10
5x =10
x =2
To find y-intercept
Substitute x =0 in the given equation
5(0) + 2y =10
2y = 10
y = 5
Therefore, x -intercept is (2, 0)
y -intercept is (0, 5)
Related Links | |
Angle Between Two Lines | Distance Between Two Lines |
Equation of a Line | Different Forms of Equation of Line |
Two Point Form
The formula of the line formed by the two points is given by:
y-y_{1}/y_{2}-y_{1} = x-x_{1}/x_{2}-x_{1}
Say, P(a, 0) = (x_{1}, y_{1}) and Q(0, b) = (x_{2}, y_{2}) are the two points of the line which cuts the x-axis and y-axis, relative to the origin(0,0). Then the formula becomes:
=> y – 0 / b – 0 = x – a/ 0 – a
=> y/b = x/-a – a/-a
=> x/a + y/b = 1
Hence, proved.
Learn more about the two-point form here.
Slope Intercept Form
The equation of the line making an intercept c on the y-axis and having slope m is given by:
y = mx + c
Note: The value of c could be positive or negative since the intercept is drawn on the positive or negative side of the y-axis, respectively.
Also, check: Slope intercept form

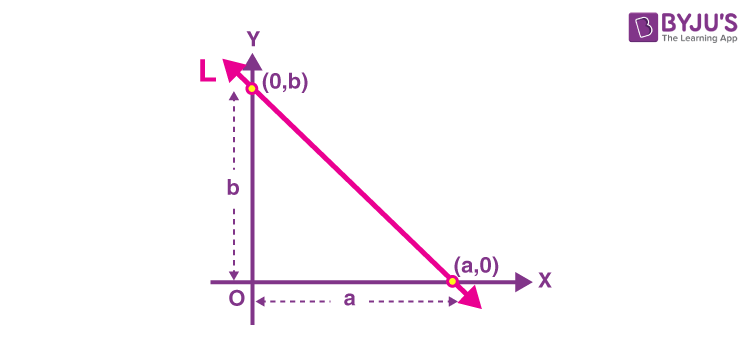

Intercept Graph
The intercepts are the points on a graph at which the graph crosses the two axes (x-axis and y-axis). The point where the graph crosses the x-axis is called the x-coordinate and the point where the graph crosses the y-axis is called the y-coordinate.
In the above intercept graph, where a line L makes x-intercept a and y-intercept b on the axes.
Thus, the equation of the line making intercepts a and b on the x-and y-axis, respectively, is:
x/a + y/b = 1
Solved Examples
Example 1: Let two intercepts P(2,0) and Q(0,3) intersect the x-axis and y-axis, respectively. Find the equation of the line.
Solution: Given, two intercepts P(2,0) and Q(0,3) intersect the x-axis and y-axis.
From the equation of the line we know,
x/a + y/b = 1 ……….. (1)
Here, a = 2 and b = 3
Therefore, putting the values of intercepts a and b, in equation 1, we get:
=>x/2 + y/3 = 1
=> 3x + 2y = 6
=> 3x + 2y – 6 = 0,
Therefore, the equation of the line is 3x + 2y – 6 = 0.
Example 2: Find the equation of the line, which makes intercepts –3 and 2 on the x- and y-axes respectively.
Solution: Given, a = –3 and b = 2.
By intercept form, we know that;
x/a + y/b = 1
x/-3 + y/2 = 1
Or
2x – 3y + 6 = 0.
Hence, this is the required equation.
Example 3: A line passes through P (1, 2) such that its intercept between the axes is bisected at P. What is the equation of the line?
Solution: The equation of a line making intercepts a and b with x-axis and y-axis, respectively, is given by:
x/a + y/b = 1
1 = (a+0)/2 ⇒ a = 2
2 = (0 + b)/2 ⇒ b = 4
Therefore, the required equation of line is;
x/2 + y/4 = 1
Practice Problems
- Find the x-intercept and y-intercept for the line 5x – 8y = 2.
- If the y-intercept of a line is -4 and the slope is 2/3, then write its equation.
- What is the equation of a line whose x and y-intercepts are given as 1/3 and -3?
Stay tuned with BYJU’S – The Learning App and download the app to explore more videos.
Frequently Asked Questions – FAQs
What is an intercept in Maths?
What is the formula for y-intercept?
b = y – mx
Where b is the y-intercept and m is the slope of the line
What is the equation of the line with respect to x and y-intercepts?
x/a + y/b = 1
