Surface area and volume are calculated for any three-dimensional geometrical shape. The surface area of any given object is the area or region occupied by the surface of the object. Whereas volume is the amount of space available in an object.

In geometry, there are different shapes and sizes such as sphere, cube, cuboid, cone, cylinder, etc. Each shape has its surface area as well as volume. But in the case of two-dimensional figures like square, circle, rectangle, triangle, etc., we can measure only the area covered by these figures and there is no volume available. Now, let us see the formulas of surface areas and volumes for different 3d-shapes.

Learn more: Mathematics Grade 10

What is Surface Area?

The space occupied by a two-dimensional flat surface is called the area. It is measured in square units. The area occupied by a three-dimensional object by its outer surface is called surface area. It is also measured in square units.

Generally, Area can be of two types:

(i) Total Surface Area

(ii) Curved Surface Area/Lateral Surface Area

Total surface area

Total surface area refers to the area including the base(s) and the curved part. It is total of the area covered by the surface of the object. If the shape has curved surface and base, then total area will be the sum of the two areas.

Curved surface area/Lateral surface area

Curved surface area refers to the area of only the curved part of the shape excluding its base(s). It is also referred to as lateral surface area for shapes such as a cylinder.

What is Volume?

The amount of space, measured in cubic units, that an object or substance occupies is called volume. Two-dimensional doesn’t have volume but has area only. For example, Volume of Circle cannot be found, though Volume of the sphere can be. It is so because a sphere is a three-dimensional shape.

Surface Area and Volume Formulas

Below given is the table for calculating Surface area and Volume for the basic geometrical figures:

Name	Perimeter	Total Surface Area	Curved Surface Area/Lateral Surface Area	Volume	Figure

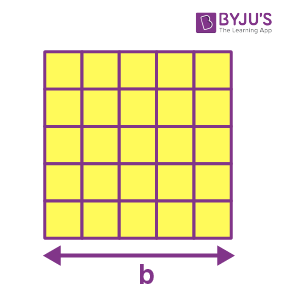

Square	4a	a2	—-	—-

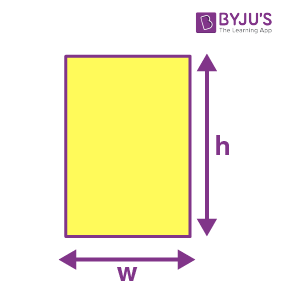

Rectangle	2(w+h)	w.h	—-	—-

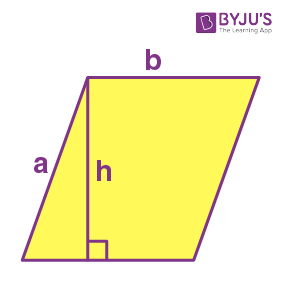

Parallelogram	2(a+b)	b.h	—-	—-

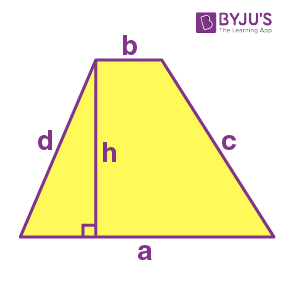

Trapezoid	a+b+c+d	1/2(a+b).h	—-	—-

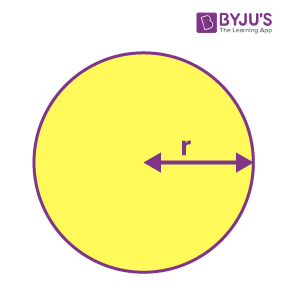

Circle	2 π r	π r2	—-	—-

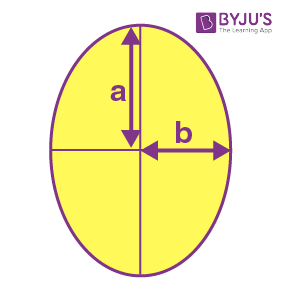

Ellipse	2π√(a2 + b2)/2	π a.b	—-	—-

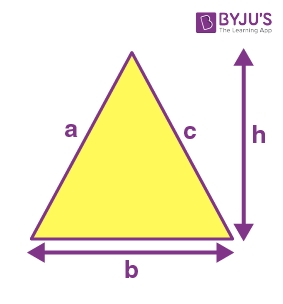

Triangle	a+b+c	1/2 * b * h	—-	—-

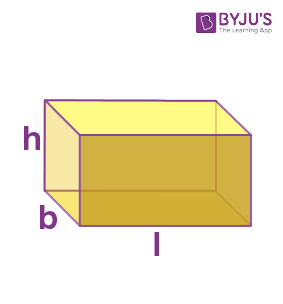

Cuboid	4(l+b+h)	2(lb+bh+hl)	2h(l+b)	l * b * h

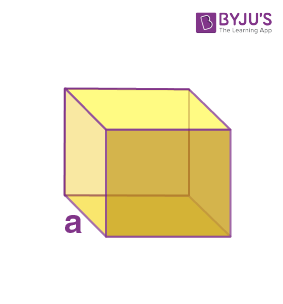

Cube	6a	6a2	4a2	a3

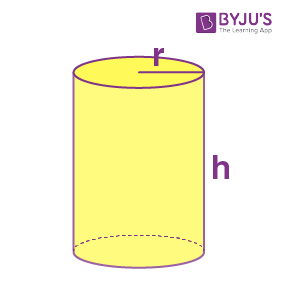

Cylinder	—-	2 π r(r+h)	2πrh	π r2 h

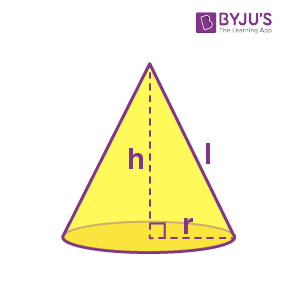

Cone	—-	π r(r+l)	π r l	1/3π r2 h

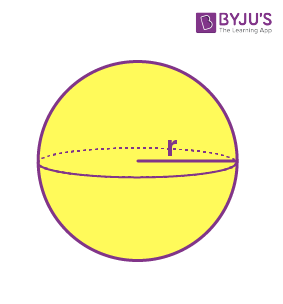

Sphere	—-	4 π r2	4π r2	4/3π r3

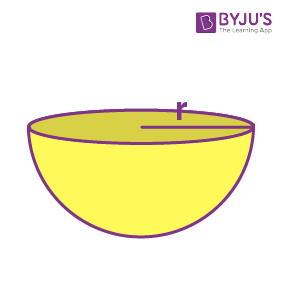

Hemisphere	—-	3 π r2	2 π r2	2/3π r3

Related Articles

• Surface Area and Volume Class 9
• Surface Areas and Volumes Class 10 Notes

Also have a look on:

Solved Examples

Q.1: What is the surface area of a cuboid with length, width and height equal to 4.4 cm, 2.3 cm and 5 cm, respectively?

Solution: Given, the dimensions of cuboid are:

length, l = 4.4 cm

width, w = 2.3 cm

height, h = 5 cm

Surface area of cuboid = 2(wl+hl+hw)

= 2·(2.3·4.4+5·4.4+5·2.3)

= 87.24 square cm.

Q.2: What is the volume of cylinder whose base radii are 2.1 cm and height is 30 cm?

Solution: Given,

Radius of bases, r = 2.1 cm

Height of cylinder = 30 cm

Volume of cylinder = πr²h = π·(2.1)²·30 ≈ 416.
