Mensuration Class 8
Mensuration Class 8 Chapter 11 notes, important questions and formulas are mentioned here. Class 8 Chapter 11 Mensuration materials are provided here as per CBSE syllabus (2021-2022) and latest exam pattern. Get through the formulas and practise the concept of mensuration with the help of given examples. Mensuration chapter has been further introduced in Class 10, hence it is necessary that each student learns its basic concept first. Mensuration basically means the measurement of the area and perimeter of different geometrical shapes such as triangles, trapeziums, rectangles, etc. Preparing this chapter from this article will help students in scoring good marks in the final exams.
Mensuration Class 8 Notes
Mensuration deals with the measurement of area, perimeter, surface area and volume of different types of shapes.
Let us recall the area of all two-dimensional shapes.
| Shape | Area |
| Rectangle | a × b |
| Square | a × a |
| Triangle | ½ b × h |
| Parallelogram | b × h |
| Circle | πr2 |

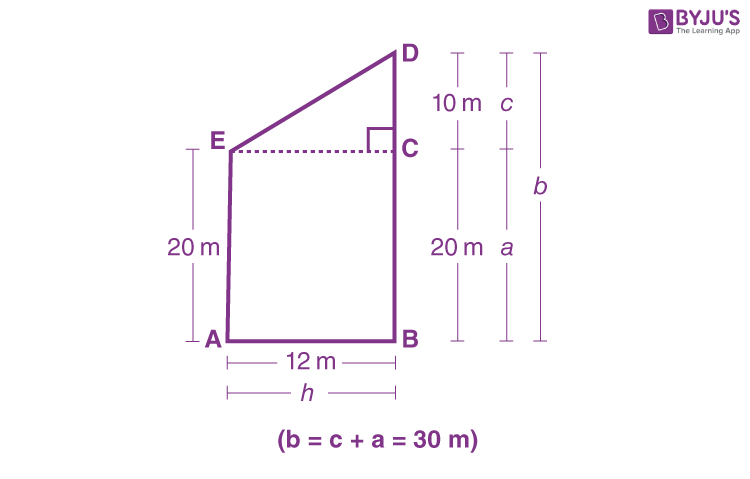

Mensuration Class 8 – Area of Trapezium
By constructing EC || AB, we can split the given figure (AEDCBA) into two parts (Triangle ECD right-angled at C and Rectangle AECB), Here, b = a + c = 30 m
Now, Area of Triangle DCE:
1/2 × CD × EC= 1/2 × c × s
h = 1/2 ×10× 12 = 60 m2
Also, Area of rectangle AECB = AB × BC = h × a=12 × 20=240 m2
Therefore, Area of trapezium AEDB = Area of Triangle DCE + Area of rectangle AECB = 60 + 240 = 300 =300m2
Area of Trapezium = Height/2 (Sum of parallel sides) = 1/2 h(a+b)

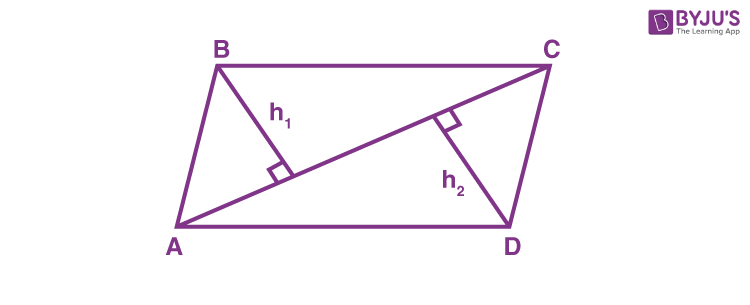

Mensuration Class 8 – Area of General Quadrilateral
Diagonal AC divides the given quadrilateral into two triangles i.e. Triangle ABC and Triangle ADC.
Now, Area of Quadrilateral ABCD = Area of Triangle ABC + Area of Triangle ADC.
=1/2 × AC × h1 + 1/2 × AC × h2 =1/2 × d × (h1 +h2)
Where, d = The length of diagonal of a quadrilateral.
The area of other polygons (pentagon, hexagon, etc.) can be determined, by splitting them into a number of triangles and finding the respective areas.
Mensuration Class 8 Formulas
The important formulas covered in this chapter are as follows:
| Area of Trapezium | height x (sum of parallel sides)/2 |
| Area of Rhombus | ½ x d1 x d2 |
| Area of Special Quadrilateral | ½ x d x (h1 + h2) |
| Surface area of Cuboid | 2(lb x bh x hl) |
| Surface area of Cube | 6a2 |
| Surface area of cylinder | 2πr(r + h) |
| Volume of Cuboid | l × b × h |
| Volume of Cube | a3 |
| Volume of cylinder | πr2h |
Where,
- d1 and d2 are the diagonals of the rhombus
- d is the diagonal of a special quadrilateral which is divided into two triangles
- h1 and h2 are the two perpendiculars from the vertices of a quadrilateral to its diagonal
- l, b and h denotes length, breadth and height of the cuboid
- r represents the radius of the cylindrical base
- a is the side of the cube
Class 8 Mensuration Important Points
- The trapezium and rhombus are the figures represented in the two-dimensional plane. Whereas Cuboid, Cube and Cylinder are three-dimensional solid shape.
- The surface area of a solid shape is the sum of the areas of its faces.
- Amount of region occupied by a solid shape is called its volume.
Volume and Capacity
Volume and capacity are almost similar to each other.
- A volume is the amount of space occupied by a three-dimensional object
- Capacity is the quantity of liquid contained in an object
- 1 mL = 1 cm3
- 1 L = 1000 cm3
- 1 m3 = 1000000 cm3 = 1000 L
More Articles for Class 8
Solved Questions for Mensuration Class 8
Example 1: Find the area of a square whose side is 30 m.
Solution: The area of square = (Side)2
Given, side = 30 m.
Then, area of square = (30)2 = 900 m2.
Example 2: Find the perimeter of a triangle with two equal sides of 5 cm and one side of 10 cm.
Solution: We know that,
perimeter of triangle = sum of all the three sides
= (5 + 5 + 10)
= 20 cm.
Example 3: Calculate the area of a trapezium whose height is 4 cm and length of parallel sides are 5 cm and 3 cm, respectively.
Solution: Given, Height of the trapezium = 4cm and length of parallel sides are 5cm and 3cm respectively.
Area of trapezium = height x (sum of parallel sides)/2
A = 4 x (5 + 3)/2
A = 4 x 8/2
A = 4 x 4
A = 16 sq.cm.
Example 4: Find the area of special quadrilateral whose diagonal length is 6 cm. And the lengths of two perpendiculars on given diagonal from the vertices are 3 cm and 4 cm.
Solution: Given, diagonal of quadrilateral, d = 6 cm.
Let the length of two perpendiculars be h1 = 3 cm and h2 = 4 cm.
As per the formula of quadrilateral, we can write,
Area of quadrilateral ABCD = ½ x d x (h1 + h2)
A = 1/2 x 6 x (3 + 4)
= 1/2 x 6 x 7
= 3 x 7
= 21 sq.cm
Example 5: Find the area of rhombus in which the length of its two diagonals is 8.5cm and 10 cm.
Solution: We know;
Area of rhombus = ½ x d1 x d2
A = 1/2 x 8.5 x 10
A = 42.5 sq.cm.
